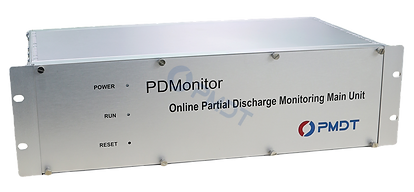

PDMonitor  Software

The PDMonitor software is used to control all of the Main Units to collect data, transmit, process, and save the data into the database, as well as analyze the data and provide diagnostic results. It has the following features:

​

• Displays PRPD, PRPS, φ-q, φ-n, q-n, q-t, and n-t data spectrums with diagnostic results for each channel in real time.


• Identifies the possible PD type according to- the signal characteristics through PMDT’s intelligent diagnostic algorithm.


• Through the statistics and analysis of the historic data, the system displays the developing trend of the PD signals that  have been collected. Historical PD data trend statistics can be reviewed over a period of time.


• The database system records and displays all monitoring data as well as spectrums. Data can be viewed using filtering choices such as sensor/sampling time/PD data.


• Built-in Fingerprint Library with PRPD and PRPS characteristics spectrums database of typical PD and noise/disturbance signals.


• Alarms are sent automatically by emails or mobile SMS when the monitored signals reach the pre-set alarm parameters. Alarms are also recorded and can be viewed at any time.


• Supports remote access and database export/import.
